PhytoSense

Making Sense of Plant Measurements

Finally, an intelligent plant monitoring system that gives insight into your plants.

Products


PhytoSense for Growers

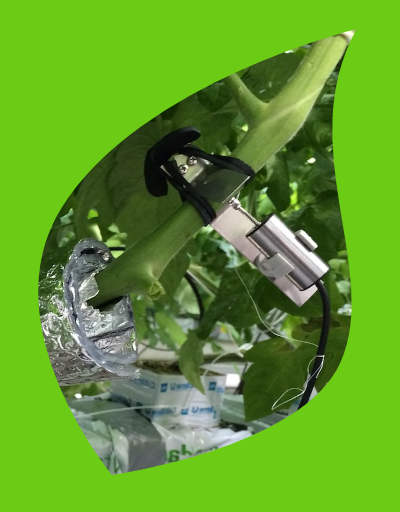

Plant sensors to measure transpiration and growth.

Monitor plant health.

Shows immediate plant responses to changes in the environment or plant manipulations.

Allows early stress detection.

PhytoSense for Research Groups

Collect and centralise all the sensor data of your research group.

Easily visualise and compare measurements.

Real-time data processing and model simulations.

Powerful user management and permissions system.

Download


Download the latest PhytoSense desktop application (v1.0)

Version 1.0

New

All data on dashboard graphs can now be exported (button in upper right corner of the graph)
Device transformation 'Filter': automatically remove values above or below a certain threshold
Account list is now sorted
Added a 'Remove' button to the dashboards drop down menu
Location on the dashboard is now remembered when switching dashboards
Last used setup for each account is now remembered
Added support for sensor node commands

Changed

More robust data fetching mechanism

Fixed

Account switching problem for accounts located on different servers
Years with system preferences YY are now accepted as 20XX instead of 19XX

Version 0.9

New

Model support: visualize results from online simulated and calibrated models (any PhytoSim model can now run in PhytoSense)
Device transformation 'Diameter Variation Correction': autocorrect diameter variation signals (removes sudden jumps)
Device transformation 'Diameter Variation Statistics': automatically calculate daily growth and maximum daily shrinkage

Changed

HRM probe spacing and wound diameter can now take any value
Shared dashboards can only be renamed when they are unlocked
More details on what 'Channel' means in the equation of the tooltip of an equation transformation

Fixed

Fixed a problem with the tooltips of combined devices
Fixed problems with graphs not showing data despite it being there
Fixed a problem with the time controls when switching between setups

Version 0.8

New

Toolbar button to reload the data of the currently visible graphs
Multiple dashboards (click the Add button on the Dashboards > Shared or Dashboards > Private navigation bar item)
Create combined devices which are combinations of channels of other devices
Minimum and low flow check for Dynagage transformation
Ability to specify a minimum interval between two transformation calculations
About dialog (Help > About (Windows) or PhytoSense > About PhytoSense (Mac))

Changed

Improved setup configuration system
Setups are now sorted in the drop-down box

Fixed

Improved 'busy' cursor
Fixed a problem where the export download dialog remained on the screen when cancelling the export
Fixed a problem where the graph settings dialog would disappear behind the main window

Version 0.7

New

Performance improvement: (detailed) data is only downloaded when it is needed for visualisation
Notification system: get notified when data values breach certain thresholds
Notification system: get notified when the data flow of a certain device is interrupted/restored
Notification system: get notified about new server/gateway messages (admin users only)

Changed

Reworked the data export system to always download all the to-be-exported data first

Fixed

Selecting a device category in the 'Devices' section now shows an empty page

Version 0.6

New

Device transformation 'Hrm': calculates heat pulse and sap velocities based on HRM (heat ratio method) temperature measurements
Time control buttons to jump to the previous/next time interval (when Live mode is off)
Gateway log messages can now be copied to the clipboard
For admin users: Organisation server log messages
For admin users: Database analytics
For admin users: API analytics

Changed

Devices in the 'Devices' section are now organized according to their device category and sorted alphabetically
Devices in the 'Sensor Network' section are now sorted alphabetically

Fixed

Fixed various issues with special character units like °C and %
Dashboards no longer crash when transformations are plotted which have been removed
Dashboard colour selection dialogs are no longer covered by the dashboard graph settings dialog
Fixed a problem with duplicate curves when dragging newly created transformations to a dashboard graph

Version 0.5

New

Dashboards with custom graphs (supporting channels and/or transformations from multiple devices on the same graph)
One 'Shared' dashboard per setup: visible to all users with read acces to that setup. Users with write access to that setup can unlock and modify the dashboard.
One 'Private' dashboard per setup: private for each user

Fixed

Permission problem caused by the device type channel unit validation

Version 0.4

New

Plot settings
Ability to add device transformations to any device for which you have write access
Device transformations 'Average': calculates the average of the data values within a specified time window
Device transformations 'Combine': combines data from several channels into one channel
Device transformations 'Cumulate': cumulates the data values within a specified time window
Device transformations 'Dynagage': calculates sap flow from raw Dynagage measurements
Device transformations 'Equation': applies an arbitrary equation to all the data points of the selected channel
Device transformations 'Integrate': calculates the surface below the curve between the data points within a specified time window
Device transformations 'Maximum': determines the maximum value within a specified time window
Device transformations 'Minimum': determines the minimum value within a specified time window
Device transformations 'Moving Average': calculates a moving average of the data values within a specified time window
Device transformations 'Remove': allows to remove parts of the selected channel data
Device transformations 'Sum': calculates the total sum of the data values within a specified time window
Real-time validation of device channel units
Device channel ids are now shown in the tooltips on the navigation bar
Sensors can now be directly attached to gateways
'Enable debug mode' gateway command: switch on debug mode for a limited duration

Changed

Live update interval is now set to 10 seconds
Devices in a setup can now have the same name
Improved data export accuracy

Fixed

Fixed problem with setup device renaming (false duplicates)
Fixed a problem with the value inspector at the exact time of a measurement
Fixed a problem with adding data to a new and empty device
Switching accounts now also updates the status bar
Fixed a graph clearing issue when no channels are present

Version 0.3

New

Easier switching between accounts
Value inspector slider

Fixed

Logout did not clear the setup selection box
Exporting of single-channel data now works again

Version 0.2

New

Setups

Changed

Devices no longer have an editable name

Version 0.1.1

Changed

Admin users can now change their own permissions

Fixed

Fixed a problem with an incorrect begin and end date/time being set for devices without data
Settings dialog is no longer 'empty' when it is opened for the first time

Version 0.1

Initial release


Contact us


Do you have additional questions or require more information?
Send us a message using the form below or contact us at info@phyto-it.com.
